Measure Your Outside Diameter (OD) - Start with an accurate OD measurement. Every center line calculation from bend radius to take off depends on getting this number right.
02
Mark Your Reference Points - Identify and mark the center line at each end of the straight section. These points anchor every measurement that follows, including tangent length and gain.
03

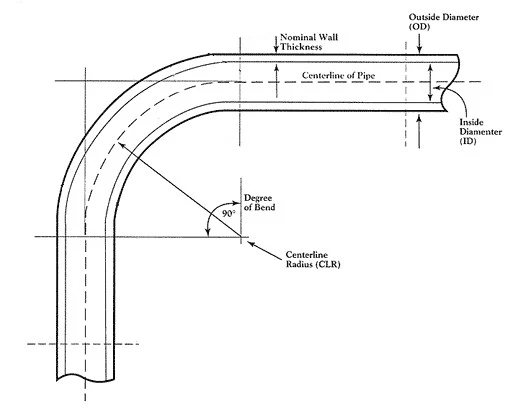

Confirm Your Center Line Radius (CLR) - Determine the radius your bend requires 30°, 45°, 60°, or 90° based on your system's clearance and flow needs. Your CLR is what separates a clean installation from a costly rework.
04
Verify Before You Cut, Weld, or Bend - Double check every measurement against your exact specifications before fabrication begins. We build to your numbers, not estimates.
Why Center Line Accuracy Matters
Write a short sentence here to introduce the accordion.Getting the center line right protects your entire material handling system from the fit of a single fitting to the performance of the whole line.
Accurate Bend Radius Calculations
A precise center line ensures your bend radius holds up under pressure and flow, in aluminum, stainless steel, carbon steel, or galvanized zinc coated steel.
Consistent Fit for Custom Fabrications
Tees, wyes, laterals, and manifolds all depend on correct center line data to fit together without costly field adjustments.
Reliable Take Off & Gain Measurements
Knowing your center line lets us calculate take off and gain precisely, so tubing and pipe straights arrive cut to your exact specifications.
Common Questions
What is a pipe's center line?
The center line is the imaginary line running through the exact middle of a pipe or tube, used as the reference point for all bend, radius, and fabrication measurements.
How do you calculate center line radius (CLR)?
CLR is measured from the center of the bend to the center line of the pipe. We calculate it based on your pipe's OD, wall thickness, material, and required bend angle (30°, 45°, 60°, or 90°).
Can All Line Components custom bend to my center line specs?
Yes. Every bend and fabrication we produce, including pneumatic bends, custom short radius bends, and bifurcated bends, is custom made to your exact center line specifications.
From straight sections to custom weld fabrications, All Line Components, LLC builds to your exact center line specifications, dropshipped directly from the manufacturer to you.
